Nitro 2024

£8,499.00

Model Description

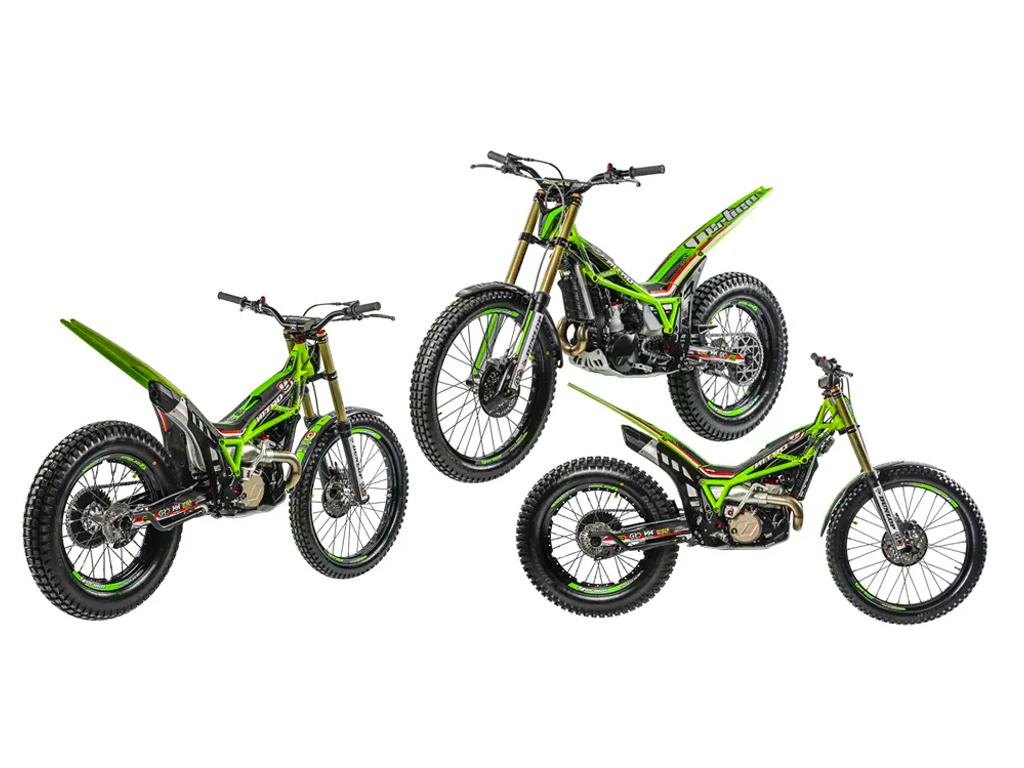

Vertigo Nitro Works 2024: The Evolution of the Species. Evolution is key to survival and just as species adapt and improve over time to survive in their environment, Vertigo has embarked on a journey of continuous improvement to offer trial enthusiasts an exceptional experience in 2024 with the new Nitro Works range.

A new, lighter and more efficient rear subframe

Just as the species evolves to adapt to its environment, Vertigo Motors has worked on one of the key aspects of the trial bike’s chassis. The new Nitro features a machined 6082 aluminium rear subframe in its 2024 range. This lighter, more efficient design marks an adaptation to the trial terrain, providing greater strength and durability.

Continuing with the Nitro Works’ new features, one finds a new crankcase protector. A 6mm shield in 7075-T6 aluminium ensures that the engine is protected against any impact it may suffer.

Finally, the new design of the Vertigo Nitro Works 2024 retains its trademark deep green colour and its attractive decoration, unique to the Nitro, which includes ‘snakeskin’ stickers that protect as well as adding high resistance to numerous parts of the bike such as headlight, mudguards, frame, filter cover, front suspension tubes and swingarm. These improvements, which have undergone rigorous competition testing, represent the culmination of Vertigo’s evolution in 2024.

Model Specification


  • Engine

    ENGINE

    2 stroke engine

    POWER

    TORQUE

    GEARBOX

    6 speed gearbox, 4 gears trial developed

    ENGINE CONTROL SENSORS

    Integrated injection driver Protocol CAN 2.0 B Atmospheric pressure & Air temperature sensor TPS (Throttle position sensor)

    STROKE

    54×54.5mm, 72.5×54.5mm, 72.5x60mm, 76x60mm, 79x60mm

  • Transmission

    CLUTCH

    Multi-disc in oil with preload and size springs designed for a smoother and more efficient shift Removable clutch cover

  • Other

    RADIATOR

    Vertigo special design, adapted to frame shape

    POWERBOX ECU

    AIRBOX

    Design providing enhanced performance

    FUEL TANK

    High capacity 2.3l and repositioned fuel tank, low and centered CG

    WATER PUMP

    Brushless, self purging water pump

  • Dimensions

    WEIGHT

    68kg

    SWING ARM

    Black Aluminium cast

  • Frame

    FRAME

    NITRO multitubular green frame 25CrMo4 steel Lightened 6082 aluminium subframe

    CRANKCASE

    Aluminium

    EXHAUST MANIFOLD

    Vertigo 125/225cc design in stainles steel

    HANDLEBAR

    Renthal Fatbar + Green renthal handlebar protector

  • Suspension

    FRONT SUSPENSION

    Tech Factory 170mm stroke

    REAR SUSPENSION

    Monoshock / swingarm, Vertigo design Swingarm combined with REIGER 2 way monoshock with compression, rebound and spring preload adjustment 170mm stroke

  • Performance

    FUEL INJECTION

    Electronic Fuel Injection

  • Brakes

    FRONT BRAKE

    Hydraulic Braktec system with 185mm disc

    REAR BRAKE

    Hydraulic system with 150mm FIM disc
