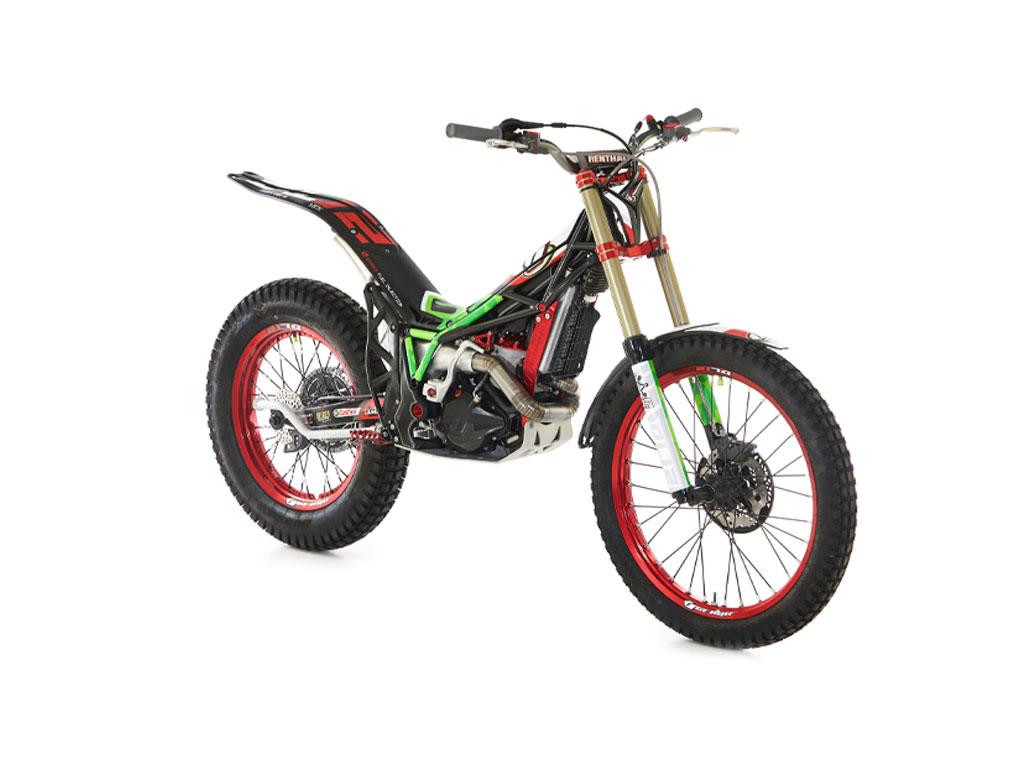

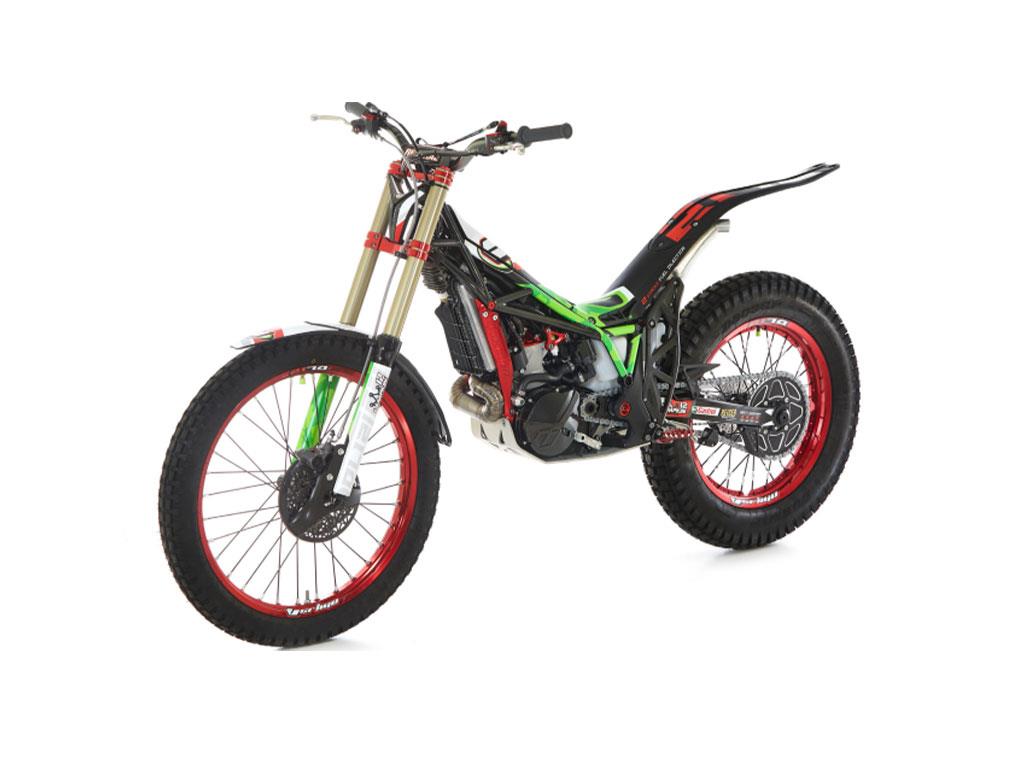

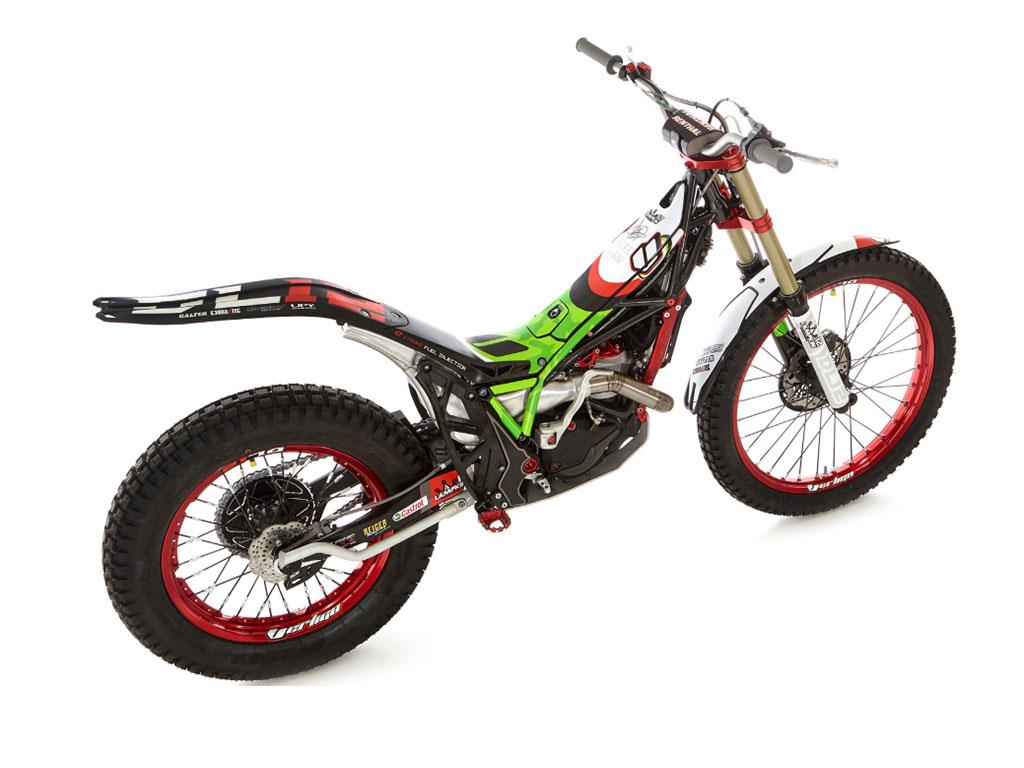

Vertigo Dougie Lampkin Replica 2019

£7,495.00

Model Description


The two-stroke machine has been designed to create an incredibly strong and balanced overall package. The ultra compact engine offers amazing torque throughout, thanks to the boundary breaking electronic system, with the ECU managing and controlling the performance of the engine in all situations. The ECU adjusts the fuel injection and ignition settings in each and every gear to provide exceptionally smooth power delivery to match all terrain / conditions. Performance is maintained in all circumstances due to the high air intake, and specially designed radiator that works seamlessly in conjunction with the electronic water pump and fan.

The superb engine characteristics are matched by a chassis package to suit. The steel multi-tubular main section provides flexibility to give the rider real time feedback whilst the aluminium sub-sections at the front and rear provide the required rigidity to withstand the rigors of all competitions. The central low mounted fuel tank means that the suspension action is unaffected by fuel load. The sleek and narrow lines of the specially designed plastic bodywork that incorporates further new technology, twin outlet silencer and flush fitting fuel cap finish off what can only be described as truly the next generation of trials bike.

Model Specification


  • Engine

    ENGINE

    Redefined 2-stroke Engine by Dougie Lampkin

    POWER

    247 cc EFI: 25 HP / 9200 rpm 300cc EFI: 31 HP / 9200 rpm

    TORQUE

    247 cc EFI: 4.0 Kg.m / 4500rpm 300cc EFI: 4.9 Kg.m / 4500rpm

    GEARBOX

    6 speed gearbox

    ECU ENGINE CONTROL UNIT

    ENGINE CONTROL SENSORS

  • Transmission

    CLUTCH

    Oil multidisc

  • Other

    RADIATOR

    Vertigo special design, adapted to frame shape

    POWERBOX ECU

    AIRBOX

    High capacity upper airbox, 1.1l capacity

    FUELTANK

    2.3l, low and centered gravity position

  • Dimensions

    WEIGHT

    68 kg

    SWING ARM

  • Frame

    FRAME

    Lighted and optimized tubular frame with new design and reinforcements

  • Suspension

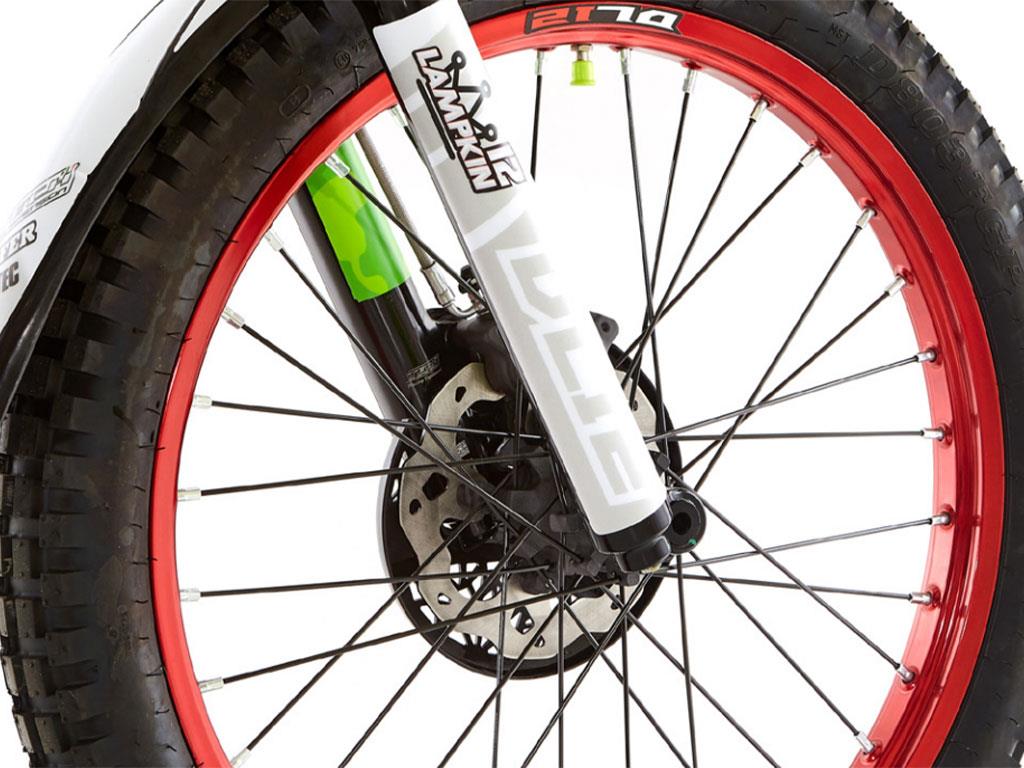

    FRONT SUSPENSION

    Tech Trail Racing

    REAR SUSPENSION

    Reiger Suspension adjustable rear shock
